Pneumatic Tube System

Discover how Pneumatic Tube System streamlines hospital operations and optimizes the distribution process of critical goods.

Contact Us

Pneumatic Tube System at glance

Pneumatic Tube System (PTS) merupakan alat yang digunakan untuk membantu memperlancar operasional rumah sakit atau pabrik dalam mengangkut barang antar ruangan atau gedung. PTS kami berasal dari Jerman dan telah terpasang di ratusan negara di seluruh dunia untuk keperluan logistik di rumah sakit, bank, industri, dan supermarket. Fungsinya yang sederhana dan sangat membantu dalam kebutuhan logistik khususnya dalam pengangkutan barang atau artikel menjadikan alat kami sebagai pilihan untuk pengangkutan barang. Keunggulan PTS sangat mirip dengan MRT namun untuk barang, barang akan diangkut dalam tabung kecil dan diluncurkan dalam pipa yang berfungsi sebagai rel untuk tabung pengiriman ini.

With PTS, hospitals can reduce classic problems in shipping goods such as human error (late, wrong place / wrong item, disruption or distraction, priority direction, theft, or lost items), long deliveries can be made faster, items sent cannot be stolen, and with the completeness of RFID will help users to detect incorrect items or destinations.

Pneumatic Tube System Components

Software

All PTS activities will be programmed and monitored by software. Similarly, RFID tracking can be easily managed from a computer.

Control Unit

Control Unit or Station is a machine where Carrier will be sent or received by the user. Stations have various types depending on the complexity and design requirements.

Carrier

Carrier functions as a medium to accommodate the goods to be sent.

Dispatch Tube

Dispatch Tube can function as a rail or track for Carrier and can be installed on ceilings, inside buildings, and between buildings. Carrier is directed to the intended facility space.

3-Phase Blower

The three-phase blower switches from pressure to vacuum in a fraction of a second via a three-position valve, by creating a difference in air pressure between the two ends of the system, the blower effectively sucks the Carrier through the tube.

Uses of Pneumatic Tube System

PharmaPost

Aerocom Pneumatic Tube System is mostly used in hospitals to speed up the delivery of goods so that it can take a short time. The goods delivered can be samples for the lab.

PharmaPost

Aerocom Pneumatic Tube System is mostly used in hospitals to speed up the delivery of goods so that it can take a short time. The goods delivered can be samples for the lab.

Cash Handling

For large institutions such as banks and large supermarkets, cash handling systems can simplify cash handling and make it more secure. In addition to money, this system can also be used to send confidential documents.

Cash Handling

For large institutions such as banks and large supermarkets, cash handling systems can simplify cash handling and make it more secure. In addition to money, this system can also be used to send confidential documents.

Versatile with Any Design

The ability to deliver goods either within one floor, one zone, or one building. In addition, this system will not include the capacity to transport between buildings.

Versatile with Any Design

The ability to deliver goods either within one floor, one zone, or one building. In addition, this system will not include the capacity to transport between buildings.

Color Coding

Carriers can be colored according to company needs to make it easier for staff to recognize the type and nature of the goods in the tube.

Color Coding

The carriers can be colored according to company requirements to make it easier for staff to recognize the type and nature of the goods inside the tube.

Pneumatic Tube System Model

The installation model structure of the Pneumatic Tube System can be adjusted according to needs.

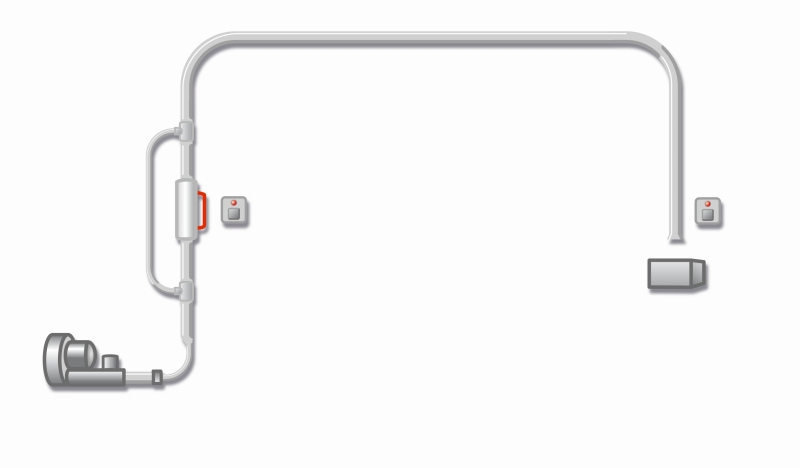

Point to Point

A simple PTS installation model between locations in two directions.

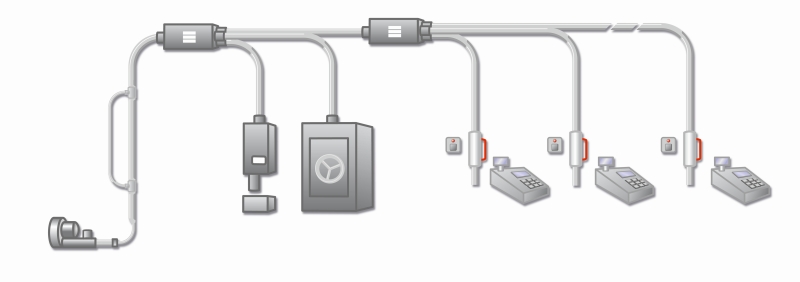

Cash Disposal

A system that connects several point stations with one cash storage location, this system is suitable for cashiers and banking systems.

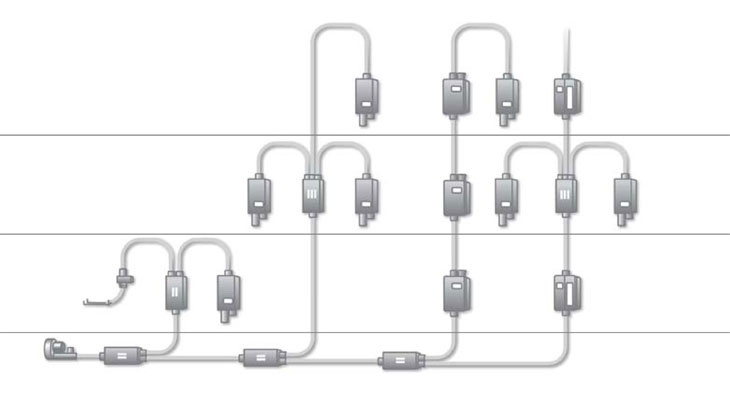

Single Zone System

A complex system that uses one blower for one zone that can include ninety-nine stations per blower.

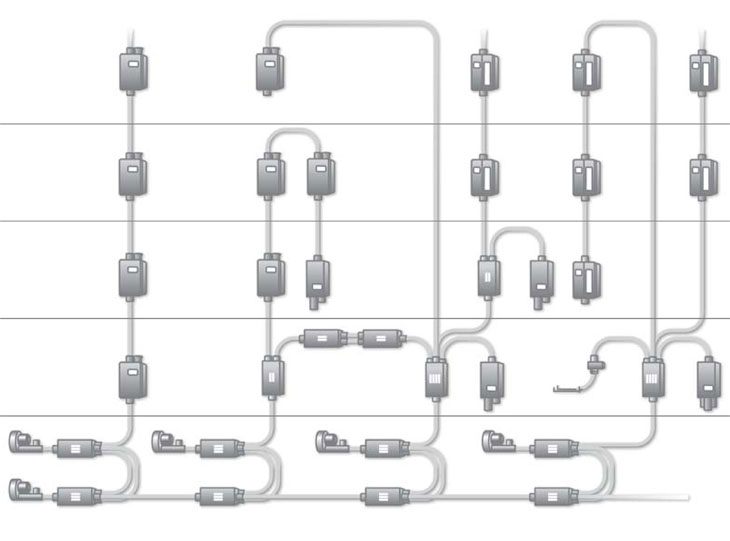

Multi Zone System

Complex systems using more than one blower. Can multiply sending and receiving so that there is no need to queue previous sending and can expand the range of the system and zones with more stations.

Our Product Brochure

We provide a brochure that includes full specification details of our Pneumatic Tube System.
